Half-Wave Center-Fed Dipole Antennas with a 1:1 Current Balun

Half-Wave Center-Fed Dipole Antennas with a 1:1 Current Balun

from 29.95
Model:
Quantity:
Add To Cart
                                Datasheet

                               Datasheet

The half-wave center-fed dipole is one of the most popular antennas in use today. In free space the center-fed half-wave antenna has an input impedance that is a close match to 50 ohm coax and to most radios that have a 50 ohm output impedance. (The actual impedance depends on the height of the antenna above ground and many other factors.)



The Frequency Devices half-wave antennas are built using #14 hard drawn 7/22 stranded wire (7 strands of #22 twisted together) to meet the National Electrical Code for antennas. Hard drawn wire is preferred in antennas because it will stretch less than soft drawn wire. Testing has shown that #14 bare 7/22 is a good, low resistance wire that radiates well.

This Antenna has been tested to withstand 100 pounds of strain over time without breaking. It can be installed as an inverted V or as a straight dipole. Our antennas are built using 18-8 stainless steel hardware, all internal nuts are self-locking, and all holes are sealed with RTV sealant or Coax-Seal.

The half-wave antenna has maximum gain off of both sides of the antenna (see Figure 1). Off of the ends of the antenna the gain is the lowest. This means that when you install the antenna you must point the two sides of the antenna in the directions you wish to communicate the most. This does not mean that the antenna will not work at all off the ends but the gain will be less.

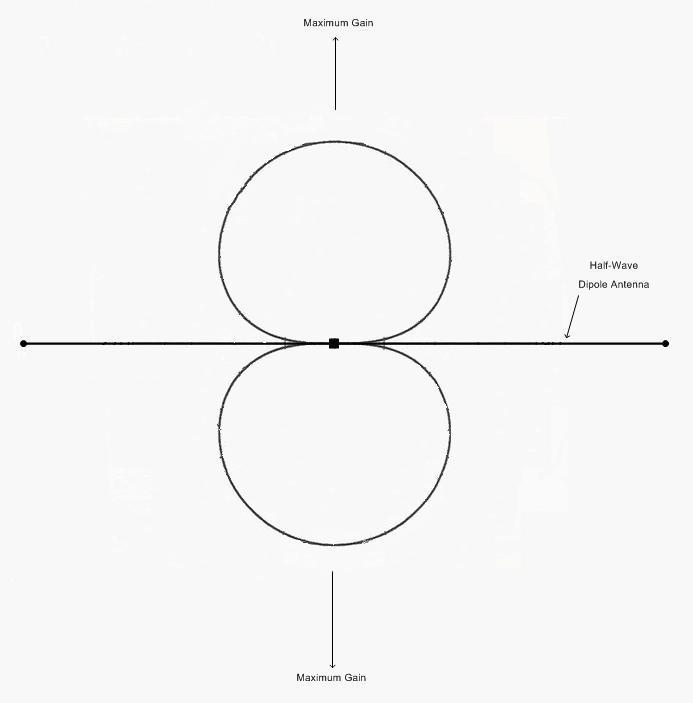

Figure 1 shows the ideal free space radiation pattern of the half-wave dipole. This pattern will vary depending on how high you install the antenna, what kind of ground is located below the antenna, what buildings and structures are close to the antenna, etc.



Figure 1

One of the problems with feeding a half-wave center-fed dipole directly with coax is that the dipole is a balanced device while coax is unbalanced. A Balun should be used to convert the unbalanced coax to a balanced output to connect to the antenna. Not using a Balun can affect the directional pattern of the antenna and can also result in having RF in your shack. These antennas have a 1:1 Current Balun based on the W2FMI design inside the center isolator and the antennas should be good for the legal limit in power provided the SWR is not over 2:1.

We also have available some Dacron rope for hanging antennas. It is 1/8 inch, double-braided, black UV-inhibited top of the line rope. It will not stretch or break down under sunlight.
